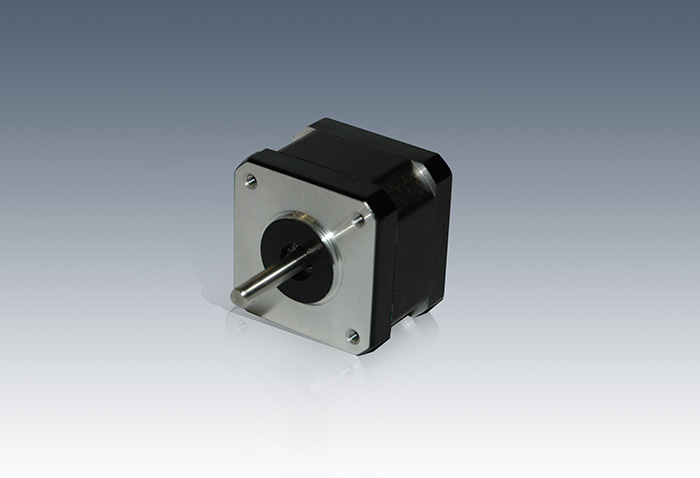

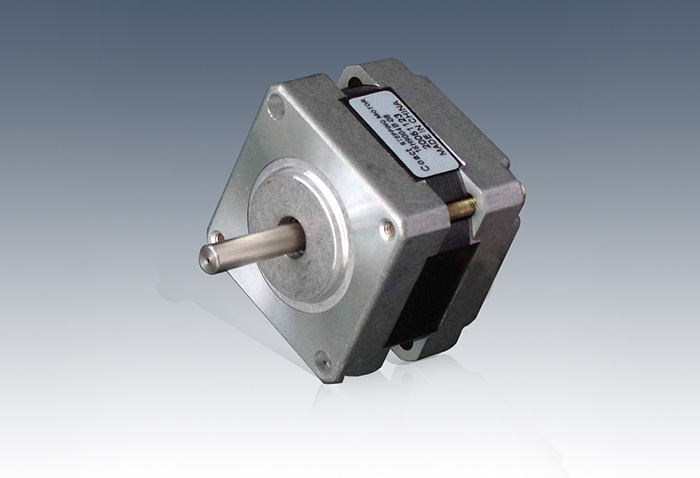

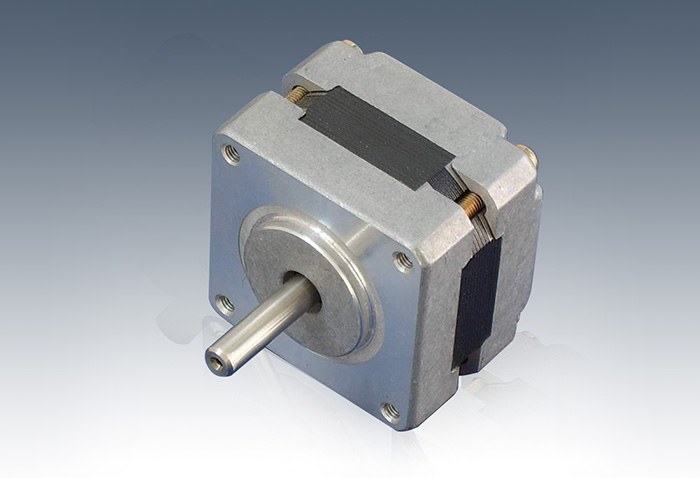

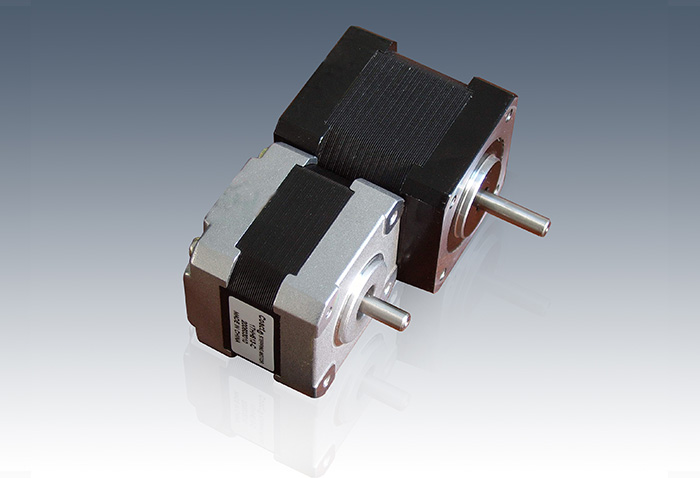

1.2° 42H三相混合式步进电机的技术参数General Specification
项目Item | 规格Specifications |
步距角精度Step Angle Accuracy | ± 5% (full step, no load) |
电阻精度Resistance Accuracy | ± 10% |
电感精度Inductance Accuracy | ± 20% |
温升Temperature Rise | 80°C Max. (rated current, 2 phase on) |
环境温度Ambient Temperature | - 10°C ~ +50°C |
绝缘等级Insulation Class | B |
介电强度Dielectric Strength | 500 VAC for one minute |
1.2° 42H三相混合式步进电机的技术规格 Technique Specifications
型号 Model No. | 电压 Rated Voltage | 电流 Current | 电阻 Resistance | 电感 Inductance | 最大静力矩Holding Torque | 引出线 # of Leads | 转动惯量Rotor Inertia | 重量Weight | 机身长度Length |
V | A | W | mH | Kg-cm | g-cm2 | Kg | mm | ||
42HS0704 | 5.3 | 1.0 | 5.3 | 2.6 | 0.5 | 3 | 25 | 0.13 | 22 |
42HS2601 | 9.92 | 0.8 | 12.4 | 9.5 | 3.6 | 3 | 55 | 0.24 | 40 |

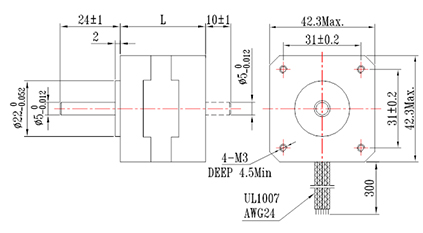

1.2° 42H三相混合式步进电机的机械尺寸Dimensions(Unit=mm)

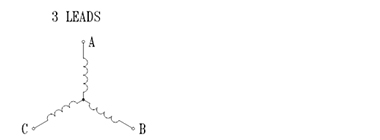

1.2° 42H三相混合式步进电机的绕线图Wiring Diagram
